Extremely compact with various connection options.

The flexible modular system for solvable and aseptic piping connections!

The ideal solution for isolation and regulation of solids of all kinds, suspensions, pastes, gaseous, fibrous and viscous media.

VMC Pinch Valve (2 MB)

Full Range of VMC Pinch Valves

Pinch Valve Sizes

10 – 65mm available in stainless steel 1.4408, aluminium AISi10Mg or plastic POM

Pinch valve Sleeves

Natural Rubber antiabrasive, EPDM, Nitrile, Hypalon, Neoprene, Silicon, Viton

FDA Approved Sleeves:
Natural Rubber food quality, EPDM food quality, Nitrile food quality

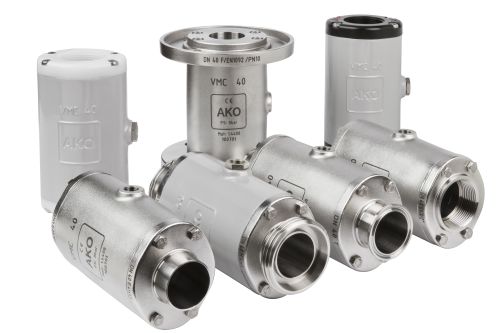

VMC Pinch Valve Optional Connections

Flange connection, internal thread connection G / NPT, tri-clamp, weld-on-ends, threaded spigot (RJT connection) connections available.

Special conductive models with a separate earthing system which are suitable for use in areas at risk of explosions (EX) in zones 1, 2, 21 and 22 are also available.

The air operated Pinch Valves of the VMC series fullfil all requirements of the Pressure Equipment Directive 97/23/EC.

Please see the datasheet below for complete fitting instructions for all sizes of the VMC valve.

Re-sleeve Instructions

For more information on this product please contact AKO UK Ltd on 01327 312747 or email
