The AKO UK Flanged Pinch Valve

'The best Pinch Valve for abrasive and many other applications'

FIT AND FORGET...

Flanged PV Datasheet (1 MB)

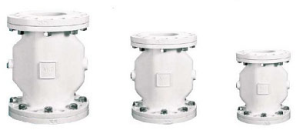

The Flanged Pinch Valve comes in sizes 40mm - 250mm

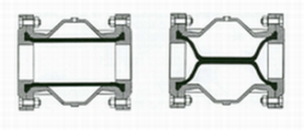

It works by the controlling medium of air pressure or water being used between the Pinch Valve body and the sleeve to give 100% closure (even against the larger abrasive particles) of the Pinch Valve. Exhausting the pressure causes the Pinch Valve to open. When open the sleeve is a true bore allowing unobstructed medium to flow through.

Pinch Valve Body

40mm-200mm - Aluminum
                       - Stainless Steel.
250mm - Steel

Pinch Valve Flange Connections

BS4504 PN10/16
ANSI 150 (on request)

Pinch Valve Flange Variations

40mm - 200mm - Aluminum with Mild Steel Bushings.
40mm - 200mm - Aluminum with Stainless Steel Bushings.
40mm - 200mm -Aluminum with Internal Thread.
40mm - 200mm - Aluminum with Flange Sleeves.
40mm - 100mm - Aluminum.
250mm - Steel.

Special Food Connections available for Pinch Valve's on request
(Tri-clamp/Clover, IDF and RJT. Please see Hygienic Pinch Valves)

Pinch Valve Operating Pressures

Up to and including 150mm                                                250mm
Maximum Line Pressure – 6 Bars                                            Maximum Line Pressure – 2.5 Bars
Maximum Operating Pressure - 8 Bars                                    Maximum Operating Pressure – 4.5 Bars
Recommended Differential Pressure – 2 - 2.5 Bars                Recommended Differential Pressure – 2 - 2.5 Bars

200mm
Maximum Line Pressure – 4 Bars
Maximum Operating Pressure - 6 Bars
Recommended Differential Pressure – 2 - 2.5 Bars

If you have any questions or require further information then please call 01327 312747 or email
