Pneumatic Pinch Valves with Tri-Clamp connection

AKO’s pneumatic (air operated) Pinch Valves with tri-clamp connections are available in sizes from DN10 to DN150, and comply with DIN 32676 row A or C. Also available in 11853-3 on request.

Pinch Valves by AKO with tri-clamp ends are compact and reliable units, consisting of only a rubber sleeve, body, and two weld-on end connections. The sleeve is clamped down into place by the tri-clamp ends. The limited parts required to form the Pinch Valve gives it an excellent total cost of ownership. No replacement seals, gaskets, rings, bolts etc are needed. The only wearable part is the rubber sleeve, which in many applications has a very long working life. This means you can install the Pinch Valve and leave it to do it’s job without fuss.

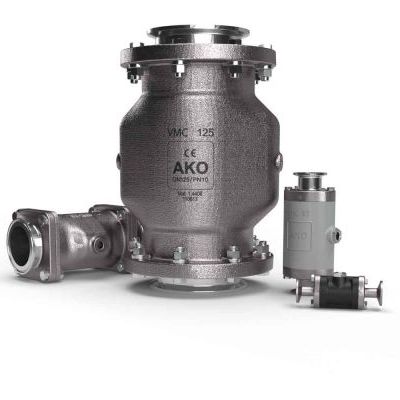

Tri-Clamp_Pinch-Valve
Types of Pinch Valves with Tri-Clamp connections
VMC Type

The VMC type is available in the following body materials:

  • powder-coated aluminium
  • electro-polished stainless steel
  • POM, white or black electrically conductive (DN10-15)

The tri-clamp connections are electro-polished stainless steel 1.4404.

Face to Face length:

  • DN10: Acc. to DIN EN 558 row 27
  • DN15-50: Acc. to DIN EN 558 row 1
  • DN65-100: Acc. to DIN EN 558 row 7

(other types of stainless steel available on request)

Sleeve Materials

There are 12 different grades of elastomer available to suit AKO Pinch Valves from the VMC range with tri-clamp ends. Some are also available in food quality.

Operating Pressures

The maximum operating pressure for VMC Pinch Valves DN10-DN150 is 6 BAR.

pinch valve with tri-clamp connections
pinch valve with tri-clamp connections
pinch valve with tri-clamp connections
Applications & Industrial Sectors
pinch valve with tri-clamp connections
Paper industry, Food & Beverage industry, Tobacco industry, Printing industry, Pharmaceuticals, Chemistry, Cosmetics.
