Pneumatic Pinch Valves with Weld-on ends

AKO’s pneumatic (air operated) Pinch Valves with weld-on end connections are available in sizes from DN10 to DN150, and comply with DIN EN 10357 Series A, or alternatively ASTM A554.

Pinch Valves by AKO with weld-on ends are compact and reliable units, consisting of only a rubber sleeve, body, and two weld-on end connections. The sleeve is clamped down into place by the weld-on ends. The limited parts required to form the Pinch Valve gives it an excellent total cost of ownership. No replacement seals, gaskets, rings, bolts etc are needed. The only wearable part is the rubber sleeve, which in many applications has a very long working life. This means you can install the Pinch Valve and leave it to do it’s job without fuss.

Types of Pinch Valves with Weld-on ends
VMC Type

The VMC type is available in the following body materials:

  • powder-coated aluminium
  • electro-polished stainless steel
  • POM, white or black electrically conductive (DN10-15)

The weld-on ends are electro-polished stainless steel 1.4404.

Face to Face length, DIN EN 10357 row A

  • DN10: Acc. to DIN EN 558 row 27
  • DN15-50: Acc. to DIN EN 12982 row 61
  • DN65-125: Acc. to DIN EN 558 row 7

(other types of stainless steel available on request)

Sleeve Materials

There are 12 different grades of elastomer available to suit AKO Pinch Valves from the VMC range with weld-on ends. Some are also available in food quality.

Operating Pressures

The maximum operating pressure for VMC Pinch Valves DN10-DN150 is 6 BAR.

valves for food
pinch valve with weld-on ends
pinch valve with weld-on ends
Applications & Industrial Sectors

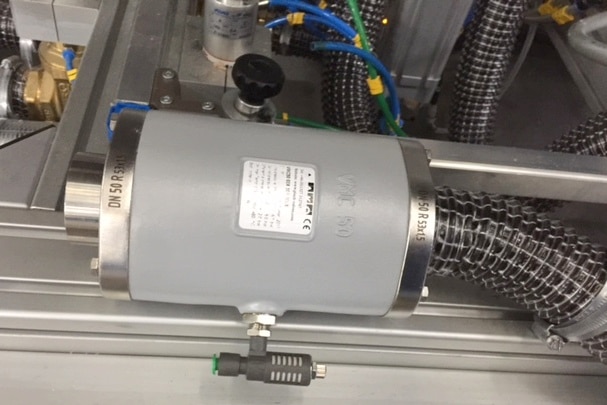

valve for colostomy bags
Paper industry, Food & Beverage industry, Textile industry, Tobacco industry, Printing industry, Pharmaceuticals, Chemistry, Cosmetics.
