Pinch Valve Maintenance, Failures & CAD

Re-sleeve videos

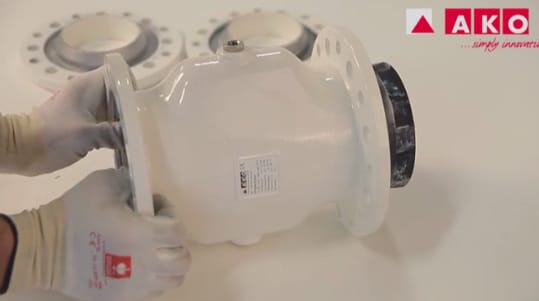

re-sleeving a squeeze valve

Find out why it is important to re-sleeve and maintain AKO Pinch Valves correctly, with maintenance videos showing the simple step by step process for each valve model.

Download CAD Drawings
pinch valve design CAD

CAD data can be useful for designing new machines or systems and configuring a Pinch Valve into your drawing. AKO Pinch Valve CAD drawings are free to download!

Typical Pinch Valve Failures

Are you experiencing problems with a Pinch Valve, such as leaking, or damaged/ruptured/deformed rubber sleeves? At AKO, we find that these problems are rare but can happen due to lack of operating and maintaining the Pinch Valves correctly.

These minor problems are quick and simple to rectify with just one or two tweaks and by taking on board some knowledgeable advice to give your Pinch Valve it’s best possible service life.

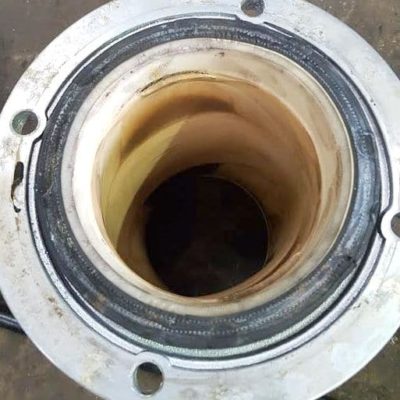

torn pinch valve sleeve

The Simple Pinch Valve Principle

AKO Pinch Valves are made up of only 3 parts (body/housing, end connections & rubber sleeve/membrane), compared to other valve types such as Knife Gate Valves which have added extra rings, seals, packing etc. In effect, Pinch Valves have a much greater total cost of ownership, making the Pinch Valve more valuable.

The video below shows the simple function of the AKO Pinch Valve, with the rubber sleeve closing into a lip shape. The rubber sleeve/membrane closes in the same shape every time, and ensures a 100% tight shutoff.

Experts in Pinch Valve Design & Manufacture

Need a Reliable Valve Solution? We can help! Talk to our sales team today:
