Manufacturing Airbus Plane Parts with Pinch Valves

An aerostructure company who manufacture parts for the Airbus planes such as wings, as well as aluminium and steel parts, are successfully using VM type AKO Pinch Valves within their manufacturing process.

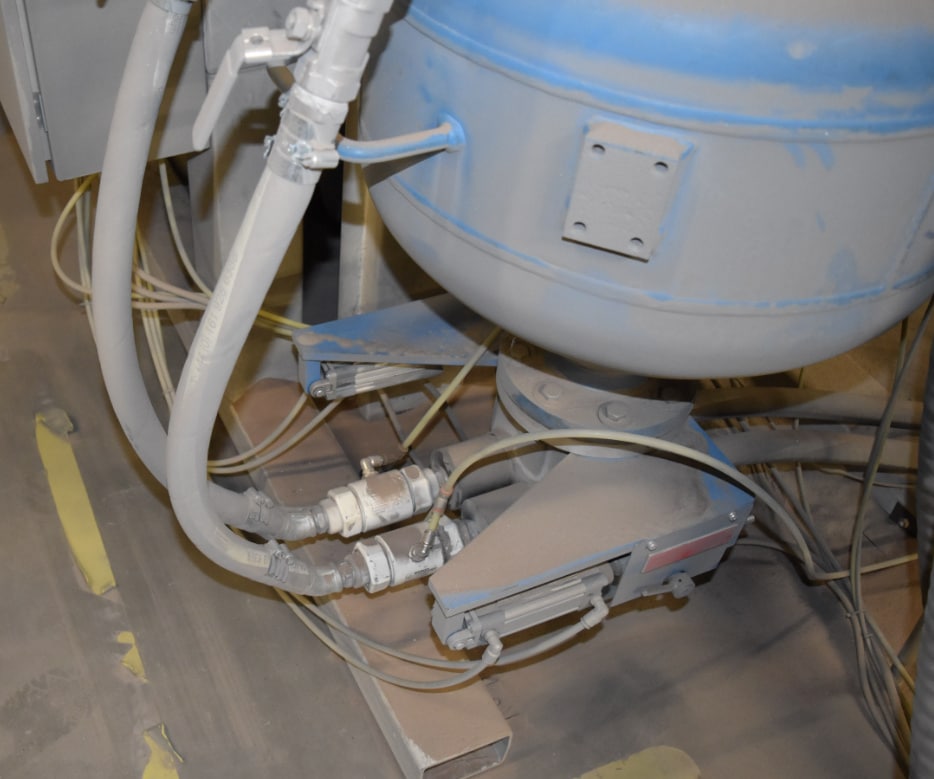

valves for aluminium oxide
Valves for Aluminium Oxide Application Details

The product going through the valves is aluminium oxide or steel shot, at ambient temperature and 1 BAR pressure. The valves are kept normally closed. The machines run for 17 hours per day, 4 times per hour, which produces 68 cycles per day. The pinch valves for aluminium oxide are operating with a control box that is situated out of the site.

Valves for Aluminium Oxide Maintenance

The engineer on site confirmed that these pinch valves have been operating for over 10 years so there are no problems. In the 10 years that AKO products have been an important part for the application, only one sleeve has failed. The engineer would now like to keep spare sleeves on the shelf in case any of the other valves need replacing. (Sleeve part code M020.03X)


Pinch Valves used within this application:

<< VM020.03X.70.30LA – VM model, air operated, aluminium body, POM plastic BSP threaded ends, natural rubber sleeve.

VM020.03X.70.80 – VM model, air operated, PVC body, POM plastic BSP threaded ends, natural rubber sleeve. >>

hose pinch valve

Every 6 months, a maintenance schedule takes place where the rubber sleeve is taken out of the pinch valve to check for any wear or damage. The sleeves are then re-fitted back into the pinch valves. This is a process that the company have carried out for years and AKO Pinch Valves have been working perfectly.

Overall, the aerostructure company are very happy with the design and performance of the AKO VM series pinch valves for aluminium oxide.

valves for aluminium oxide

Many engineers use the term ‘fit and forget’ with Pinch Valves. The valve is fitted in-line and often forgotten about because of its reliability and exceptional performance. For more application examples where Pinch Valves can be used, please see Pinch Valve Applications.

Experts in Valves for Aluminium Oxide Steel Shot
